Model: AMP-16U-RACK

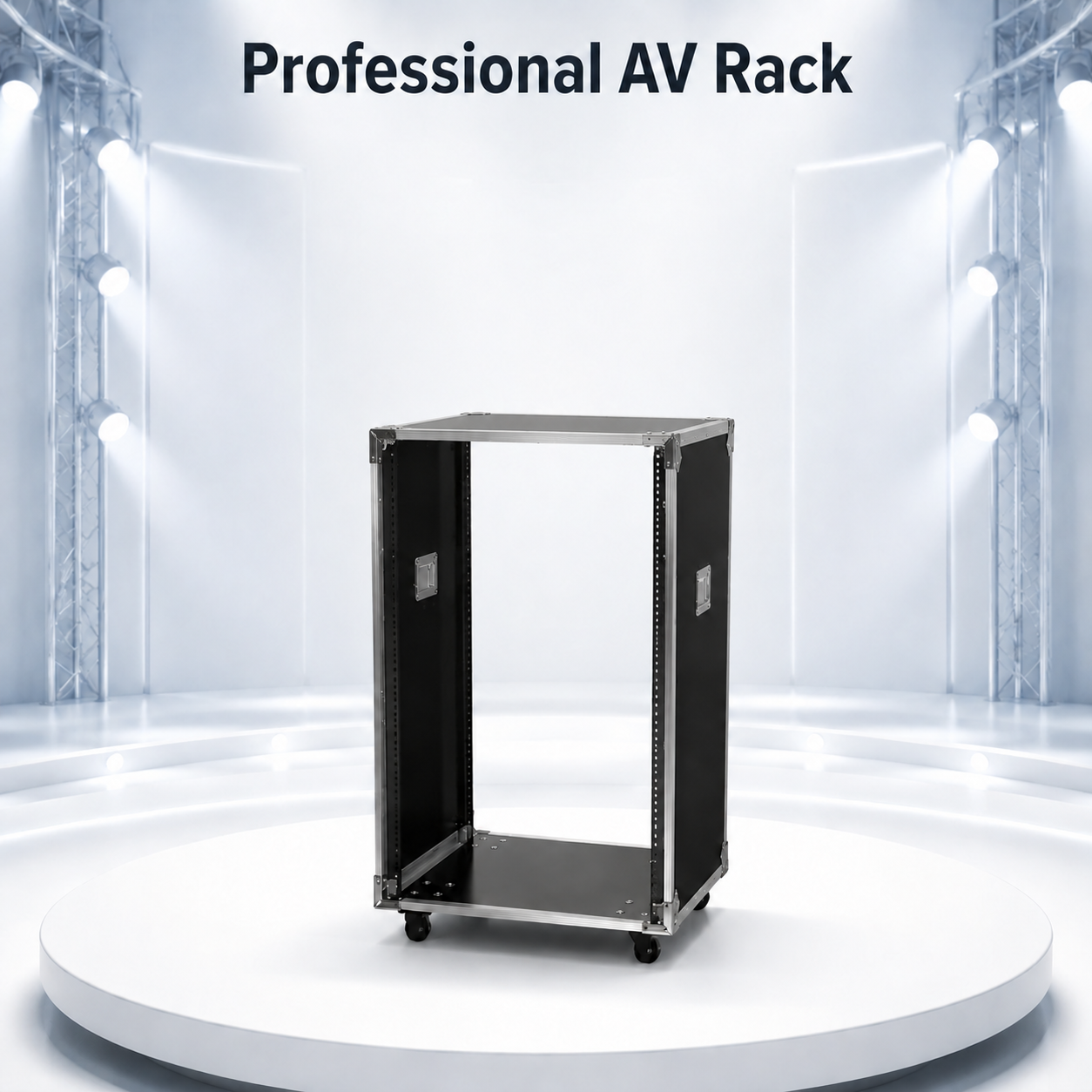

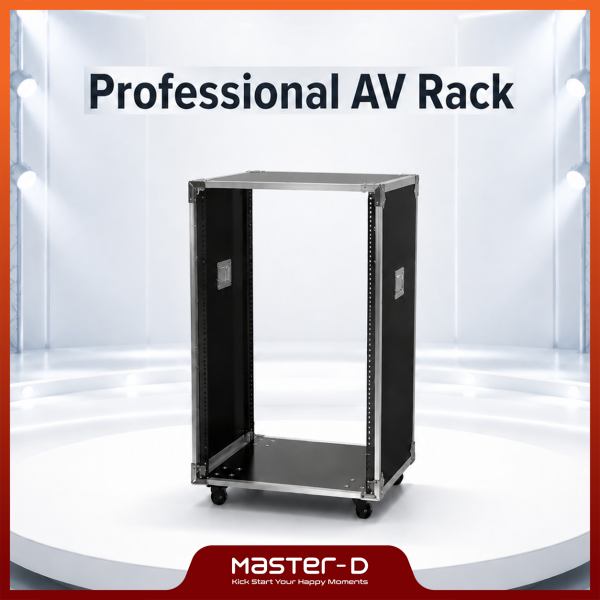

The Master-D Professional AV Rack AMP-16U-RACK is a spacious equipment rack designed to organise amplifiers, audio processors, microphone receivers and other compatible professional AV components in one central location. With a generous 16U rack capacity, it is particularly suitable for larger karaoke, entertainment and commercial sound systems that use multiple devices.
Instead of placing equipment loosely on tables, shelves or separate cabinets, the AMP-16U-RACK allows the main components to be installed as one properly organised system. This creates a cleaner professional appearance while making operation, cable management, inspection and maintenance more convenient.
The AMP-16U-RACK provides 16 rack units of equipment space, commonly written as 16U. A rack unit, or “U,” is the standard measurement used to describe the mounting height of professional rack-compatible equipment.
Different devices require different amounts of rack space. A wireless microphone receiver may occupy less space, while a professional power amplifier may require two or more rack units. With its 16U capacity, this rack can accommodate a larger combination of compatible equipment.
The additional space gives system designers greater flexibility when arranging devices. It can also provide room for ventilation gaps, cable-management accessories, blank panels or future system expansion.
A complete professional AV or karaoke system may contain several components, such as:
The 16U capacity allows these components to be installed in a clear and logical arrangement. Users can keep the entire system together rather than operating equipment placed in different parts of the room.
Every device in an AV system performs a specific function. The microphone receiver captures the wireless microphone signal, the processor adjusts the sound and the power amplifier drives the speakers.
When all these components are installed in one rack, their relationship becomes easier to understand. Frequently used equipment can be placed at a convenient operating height, while heavier components can be installed closer to the bottom to improve the rack’s overall balance.
A properly planned layout helps users locate the correct controls quickly and gives the entire sound system a more professional appearance.

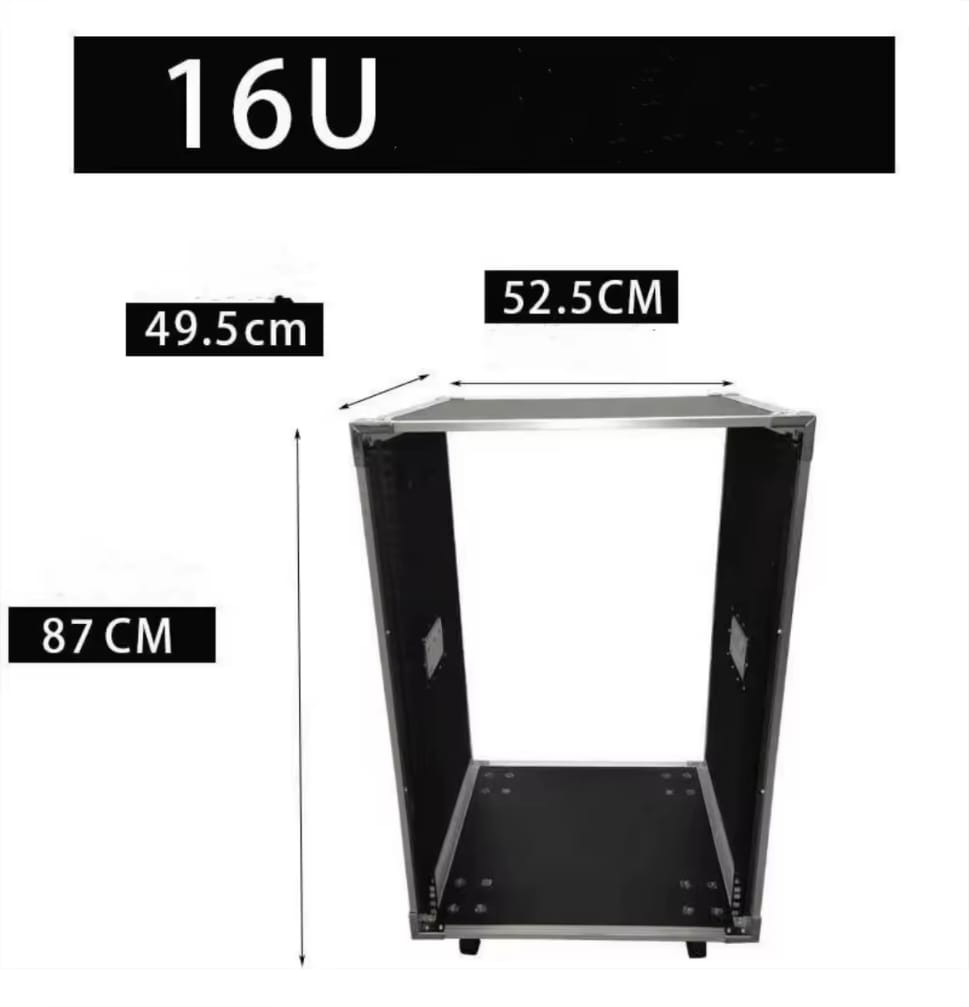

Although the AMP-16U-RACK offers more installation space, it maintains a relatively compact footprint. Its approximate external dimensions are:
The rack gains most of its additional capacity through its taller design rather than occupying significantly more floor area. This makes it useful for installations that require more equipment space but have limited room around the system.
It can be positioned beside a karaoke console, stage area, control desk or entertainment system while keeping the equipment concentrated within one vertical structure.
The AMP-16U-RACK features reinforced metal sections around its exterior corners and edges. These reinforcements support areas that may experience regular contact during positioning, movement and daily use.
Its black body and metallic corner sections create a professional road-case-inspired appearance that complements most amplifiers, processors and audio equipment.
This construction makes the rack suitable for fixed systems as well as applications where the equipment may occasionally need to be repositioned.
Recessed carrying handles are fitted to the side panels, providing convenient grip points when the rack needs to be lifted or positioned.
Because the handles sit within the panels, they do not protrude unnecessarily from the rack’s exterior. This helps maintain its compact shape and reduces the possibility of the handles catching on nearby objects.
The combined weight of the rack and all installed equipment should always be considered before lifting. A fully loaded 16U rack may require two or more people to move safely.
The rack is equipped with a mobile base to make repositioning more convenient on suitable indoor surfaces. This can help installers access the rear connections or move the system into the correct operating position.
Mobility is especially helpful in multifunction rooms, event areas and commercial environments where the AV setup may occasionally need to be rearranged.
Before moving the rack, all external cables should be disconnected or properly secured. The rack should be moved carefully across a smooth and level surface to avoid damaging the equipment or surrounding property.
The AMP-16U-RACK has an open front and rear structure, giving users and technicians convenient access to both sides of the installed equipment.
Front access allows users to operate controls, monitor displays and adjust equipment settings. Rear access makes it easier to connect power cables, audio inputs, signal outputs, speaker cables and other system wiring.
This open layout is especially useful during installation, servicing and troubleshooting because technicians can access connections without removing every device from the rack.
Rack rails are provided at the front and rear areas for the installation of compatible rack-mount equipment and supporting accessories.
The front rails keep equipment controls and displays accessible, while the rear mounting points may provide additional support depending on the construction and requirements of the installed device.
Heavy equipment should not be supported only from the front unless it is designed for that mounting method. Suitable rear support, shelves or mounting accessories may be required.
Larger AV systems can contain many different cables, including:
When the devices are installed in separate locations, these connections can quickly become tangled and difficult to identify. The AMP-16U-RACK brings compatible equipment into one central area, allowing cables to follow clearer and shorter routes between components.
Cables can be grouped and labelled according to their functions. This makes future servicing and troubleshooting easier while helping reduce accidental disconnection.
Power amplifiers and other professional audio components can generate substantial heat, particularly when used for long periods or at high output levels.
The open front and rear structure allows air to circulate around the equipment. However, installers must still follow the ventilation requirements specified by each equipment manufacturer.
Heat-generating devices may require empty rack spaces, ventilation panels or additional cooling solutions. Air intake and exhaust openings must not be blocked, and sufficient space should be maintained behind the rack.
The rack should be installed in a clean, dry and properly ventilated indoor environment.
An organised rack keeps every component in a consistent location. Users can identify microphone receivers, processors and amplifiers more quickly without searching through equipment placed around the room.
This is especially useful in commercial or shared environments where different staff members may need to operate the system. A clear arrangement reduces confusion and helps users understand which device controls each part of the AV system.
Labels may also be added to the rack or equipment to make operation even more straightforward.
When all the main components are arranged within one rack, technicians can inspect the system more efficiently. Equipment can be identified quickly, and cable connections can be traced more easily from one device to another.
The open access also makes routine cleaning, cable replacement, equipment adjustment and troubleshooting more convenient. Once the devices are installed correctly, the system can remain in a consistent configuration without frequent rearrangement.
The Master-D Professional AV Rack AMP-16U-RACK is suitable for a wide range of professional indoor applications, including:
Before installing equipment, users should calculate how many rack units are required by the complete system. Equipment depth, rear connectors, ventilation requirements and total weight must also be considered.
For improved stability, heavier components should generally be installed closer to the bottom, while lighter and more frequently operated devices can be positioned higher. The total weight should be distributed evenly and should not exceed the rack’s recommended capacity.
Professional installation is recommended for systems containing multiple heavy amplifiers or complex signal connections.
The Master-D Professional AV Rack AMP-16U-RACK provides the space and organisation needed for a larger professional audio or karaoke system. Its generous 16U capacity supports a wide combination of compatible components, while its compact footprint helps users make efficient use of available floor space.
With reinforced corners, recessed handles, mobile positioning, front and rear mounting rails and open equipment access, it offers a practical foundation for building a cleaner, more accessible and easier-to-manage AV system.
| Specification | Details |
|---|---|
| Product Name | Master-D Professional AV Rack – 16U |
| Model | AMP-16U-RACK |
| Product Type | Professional AV Equipment Rack |
| Rack Capacity | 16U |
| External Width | Approximately 52.5cm |
| External Height | Approximately 87cm |
| External Depth | Approximately 49.5cm |
| Mobility | Mobile Base |
| Carrying Feature | Recessed Side Handles |
| Exterior Protection | Reinforced Metal Corners and Edges |
| Equipment Access | Open Front and Rear |
| Mounting System | Front and Rear Rack Rails |
| Colour | Black |
| Recommended Use | Amplifiers, processors, karaoke and professional AV equipment |
| Installation Environment | Indoor Use |
