Model: AMP-12U-RACK
The Master-D Professional AV Rack AMP-12U-RACK is a spacious and mobile equipment rack designed to organise compatible audio, karaoke and professional AV components within one convenient structure. Its 12U rack capacity provides useful installation space for systems containing multiple devices, while the built-in wheels and recessed side handles make positioning and transportation easier.
Instead of placing amplifiers, audio processors, microphone receivers and other devices separately on tables or shelves, the AMP-12U-RACK allows users to combine their essential equipment into one organised system. This creates a cleaner presentation and makes daily operation, cable management, inspection and maintenance more convenient.
The AMP-12U-RACK provides 12 rack units of installation space, commonly written as 12U. “U” is the standard measurement used to describe the mounting height of professional rack-compatible equipment.
Different devices occupy different amounts of rack space. A wireless microphone receiver or power management unit may require less space, while a professional power amplifier may use two or more rack units. The 12U capacity allows users and installers to arrange several components according to the requirements of the complete AV system.
Compared with a smaller rack, the additional capacity also provides greater flexibility for ventilation gaps, cable management accessories or future equipment upgrades.
The AMP-12U-RACK can accommodate a range of compatible professional components, including:
By centralising these components, the rack helps create an AV system that is easier to understand and manage. Users can identify each device quickly instead of searching through equipment placed in different areas.
The rack is fitted with four wheels, making it easier to reposition on a smooth and level indoor surface. This is particularly useful for mobile audio systems, events, multifunction rooms and installations that require regular access to the rear connections.
Instead of lifting the complete rack whenever the system needs to be moved, users can carefully roll it into the required position. The wheels also help technicians access different sides of the system during installation, cable adjustment and maintenance.
Before moving the rack, users should disconnect or secure all external cables and ensure that the route is clear. The rack should be moved slowly to protect both the equipment and surrounding property.
Recessed handles are fitted to the rack’s side panels, providing convenient grip points when lifting or positioning the unit.
Because the handles sit within the side panels, they do not extend unnecessarily beyond the rack’s body. This helps maintain a compact external profile and reduces the possibility of the handles catching against nearby objects during transport or storage.
Users should consider the combined weight of the rack and all installed equipment before lifting it. Assistance from another person may be necessary when the rack is fully loaded.
The rack features reinforced metal corner and edge sections to support the exterior areas that may be exposed to contact during movement and everyday use.
Its reinforced design gives it a professional road-case-inspired appearance, making it suitable for systems that may be moved more frequently than a permanent cabinet. The black exterior and metallic corner sections complement most professional amplifiers, processors and audio equipment.
Although the rack is designed for professional use, it should still be handled carefully and protected from drops, strong impacts, rain and excessive moisture.
The open front and rear sections provide convenient access to both the controls and connections of installed equipment. Users can operate devices from the front, while technicians can reach the power, signal and speaker connections at the rear.
This design is especially helpful when equipment needs to be installed, adjusted or serviced regularly. Technicians can inspect connections without removing every component from the rack.
The open design also makes it easier to trace signal paths and identify the source of a connection during troubleshooting.
The AMP-12U-RACK includes rack rails at both the front and rear areas, providing suitable mounting points for compatible equipment and supporting accessories.
Front rails allow equipment controls and displays to remain easily accessible. Rear mounting points may be used according to the requirements and construction of the installed equipment.
Before installation, users should confirm the device’s rack standard, mounting-hole position, chassis depth and support requirements. Heavier equipment may require suitable rear support rather than relying only on the front mounting points.
A larger professional audio system may contain multiple devices that perform different functions. For example, microphone receivers handle wireless signals, processors adjust the sound and power amplifiers drive the speakers.
The 12U rack allows these components to be arranged in a logical order. Frequently operated devices can be positioned at a comfortable level, while heavier amplifiers can be installed closer to the bottom to improve overall balance.
A well-planned arrangement helps users understand the system more easily and gives the complete setup a cleaner, more professional appearance.
Professional AV systems require multiple power, audio, speaker and control cables. Without proper organisation, these connections can become tangled, difficult to identify or accidentally disconnected.
By keeping compatible equipment inside one rack, the AMP-12U-RACK allows cables to follow clearer routes between components. Installers can group and label connections according to their functions, making future maintenance and troubleshooting easier.
Proper cable management is especially important when the rack is moved regularly. External connections should always be disconnected or secured before transportation.
Power amplifiers and other professional AV components can produce considerable heat during operation. Correct equipment placement and ventilation are therefore essential.
The rack’s open front and rear allow air to circulate around the installed equipment. However, users must ensure that the ventilation openings of each device are not blocked. Suitable gaps should be reserved between heat-generating components when required by the equipment manufacturer.
The rack should be positioned in a clean and properly ventilated indoor area. It should not be placed directly beside a heat source, in direct sunlight or in an enclosed location with insufficient airflow.

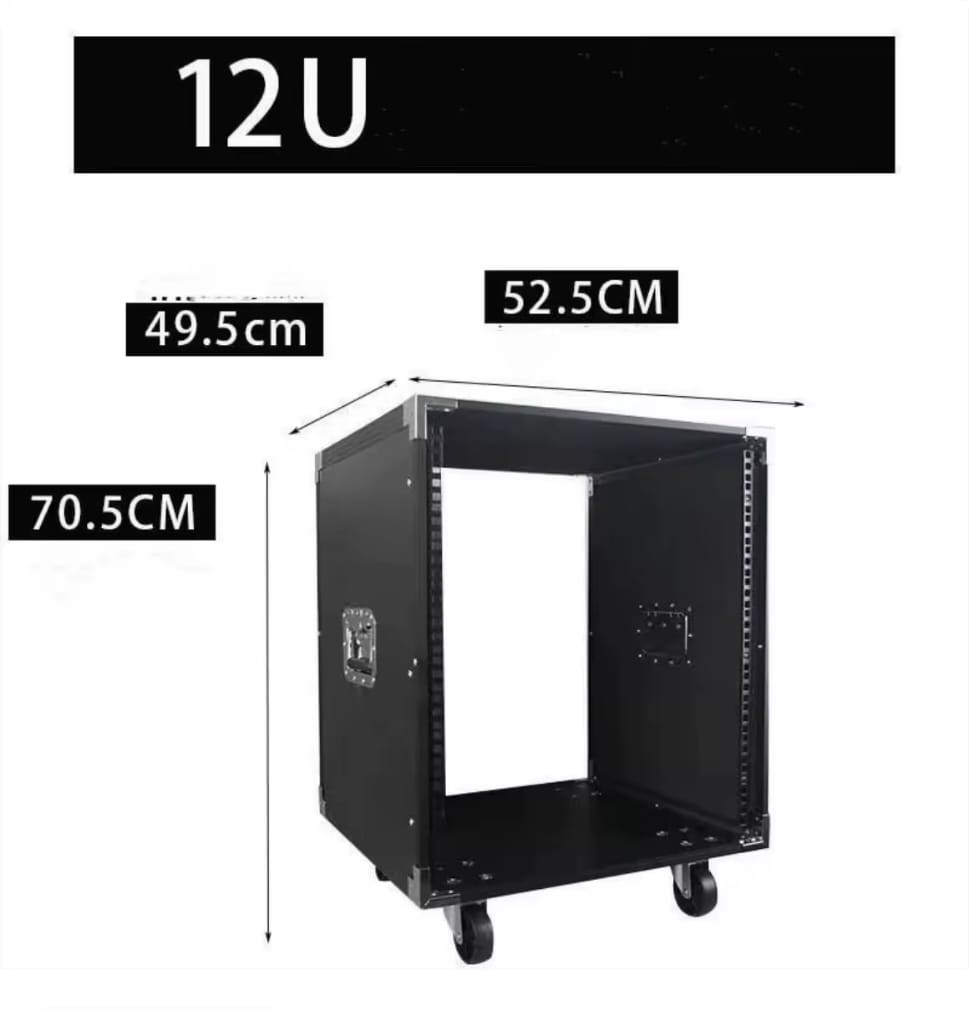

The AMP-12U-RACK has approximate external dimensions of:
Its taller structure provides the additional capacity needed for a 12U system while maintaining a compact width and depth. This allows it to fit beside a karaoke console, stage, control table or entertainment system without requiring excessive floor space.
Equipment compatibility should not be determined from the external measurements alone. Users must also confirm the available internal mounting depth and leave sufficient clearance for rear connectors and cable bending.
The Master-D Professional AV Rack AMP-12U-RACK is suitable for a wide variety of indoor applications, including:
Once the devices are installed correctly, every component remains in a consistent position. Users can find the required controls quickly, making the system easier to operate during karaoke sessions, meetings or performances.
This is particularly useful in commercial or shared environments where several people may need to operate the same system. A clearly arranged rack reduces confusion and helps users identify the function of each device.
Keeping equipment and cables together inside one structured rack allows technicians to inspect the system more efficiently. Connections can be traced from one device to another, while individual components can be identified without moving several pieces of loose equipment.
The open front and rear access also simplify equipment adjustments, cable replacement and routine maintenance. This can reduce setup time and help keep the system in a consistent configuration.
The Master-D Professional AV Rack AMP-12U-RACK combines generous rack capacity with convenient mobility and professional equipment organisation. Its 12U mounting space is suitable for systems containing multiple compatible components, while the wheels and recessed handles make repositioning and handling easier.
For karaoke, events, meetings, performances or commercial audio installations, the AMP-12U-RACK provides a practical foundation for building a cleaner, more accessible and easier-to-manage AV system.
| Specification | Details |
|---|---|
| Product Name | Master-D Professional AV Rack – 12U |
| Model | AMP-12U-RACK |
| Product Type | Mobile Professional AV Equipment Rack |
| Rack Capacity | 12U |
| External Width | Approximately 52.5cm |
| External Height | Approximately 70.5cm |
| External Depth | Approximately 49.5cm |
| Mobility | Four Built-In Wheels |
| Carrying Feature | Recessed Side Handles |
| Exterior Protection | Reinforced Metal Corners and Edges |
| Equipment Access | Open Front and Rear |
| Mounting System | Front and Rear Rack Rails |
| Colour | Black |
| Recommended Use | Amplifiers, processors, karaoke and professional AV equipment |
| Installation Environment | Indoor Use |
