Model: M-16

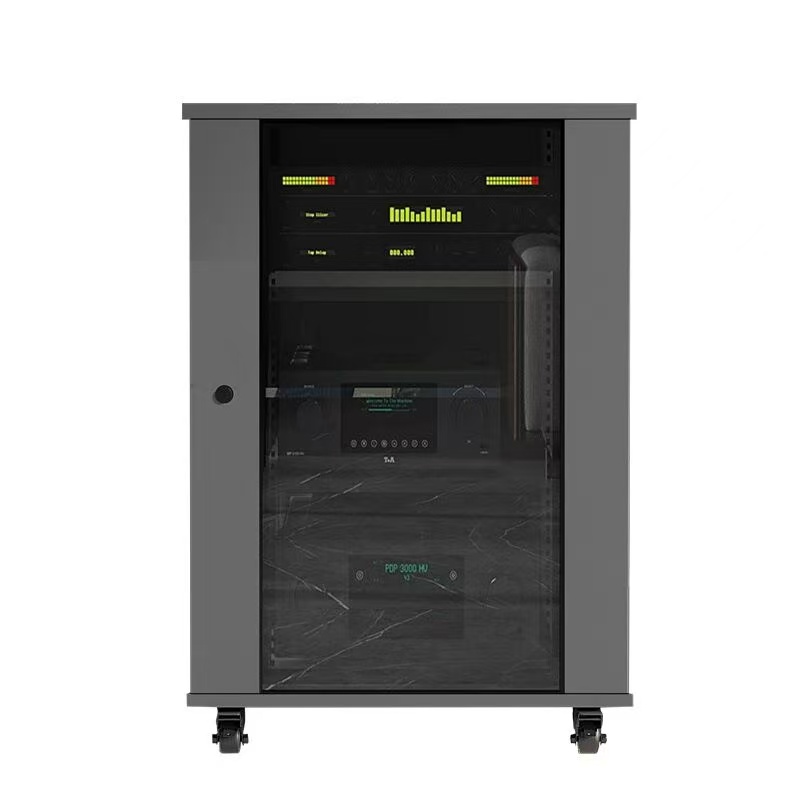

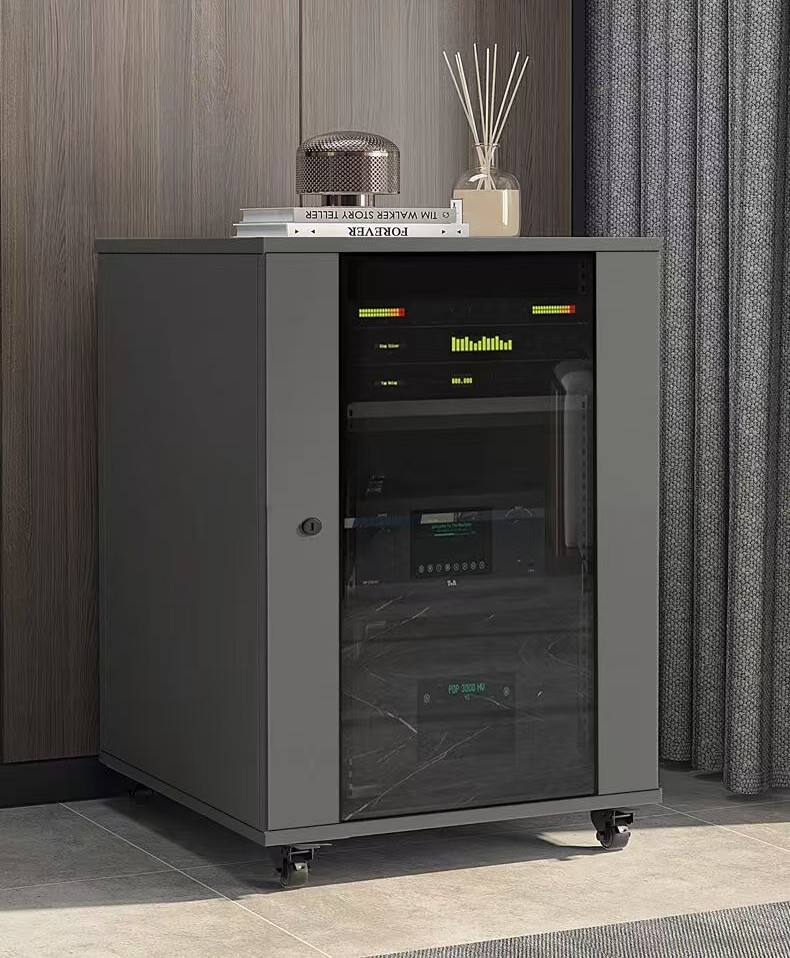

The Master-D Onyx Professional AV Rack M-16 is a professional equipment rack designed to keep audio, video, karaoke and control equipment neatly arranged in one central location. With a spacious 16U rack capacity, it is suitable for AV systems containing multiple compatible rack-mount components.
Rather than placing amplifiers, processors, wireless microphone receivers and other devices separately on tables or open shelves, the M-16 brings the system together in a cleaner and more organised installation. This improves the overall appearance of the setup while making everyday operation, cable management, inspection and maintenance more convenient.
A professional AV system can include many individual devices, such as power amplifiers, digital audio processors, mixers, wireless microphone receivers, media players, power management units and control equipment.
If these components are placed loosely or stacked without proper planning, the installation may become untidy and difficult to operate. Cables can become tangled, controls may be harder to reach and identifying a particular device can take more time.
The M-16 provides a dedicated installation area where compatible equipment can be arranged clearly according to its purpose. This allows the complete system to look and function as one organised unit.
The M-16 provides 16 rack units of installation capacity, commonly described as 16U. A rack unit, or “U,” is the standard measurement used to describe the installation height of professional rack-mount equipment.
Different devices require different amounts of rack space. A compact wireless microphone receiver may occupy fewer rack units, while a larger power amplifier may require more. With its 16U capacity, the M-16 offers greater flexibility for systems containing several components.
The additional rack space can also be useful when users need to reserve room for ventilation gaps, blank rack panels or future equipment upgrades.
The rack measures approximately 56cm wide, 57cm high and 80cm deep externally. Its 80cm depth provides practical space for compatible equipment that may require additional room for rear connections and cable routing.
This deeper design can be especially useful for larger AV components, but equipment dimensions may differ between brands and models. Users should always check the physical depth of each device, including the space required for rear plugs and cables, before installation.
Despite its generous depth, the rack maintains a relatively compact width, allowing it to fit into many residential and commercial AV environments.

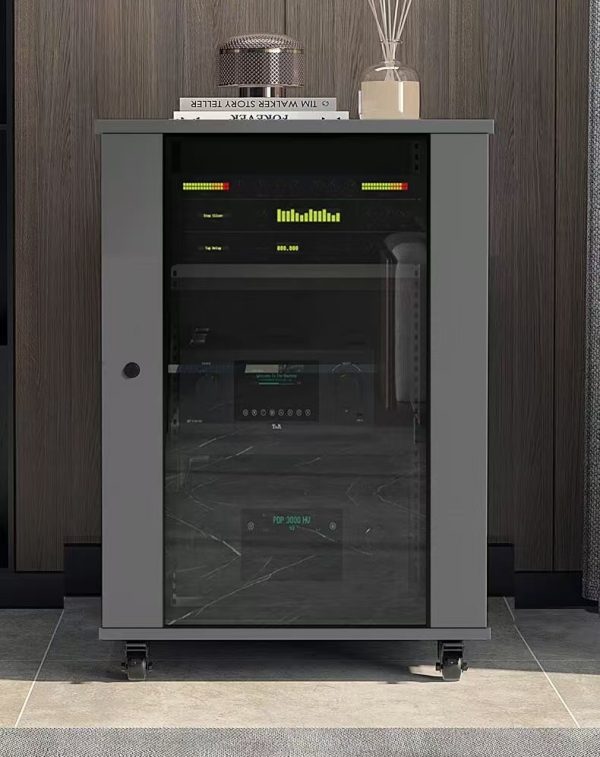

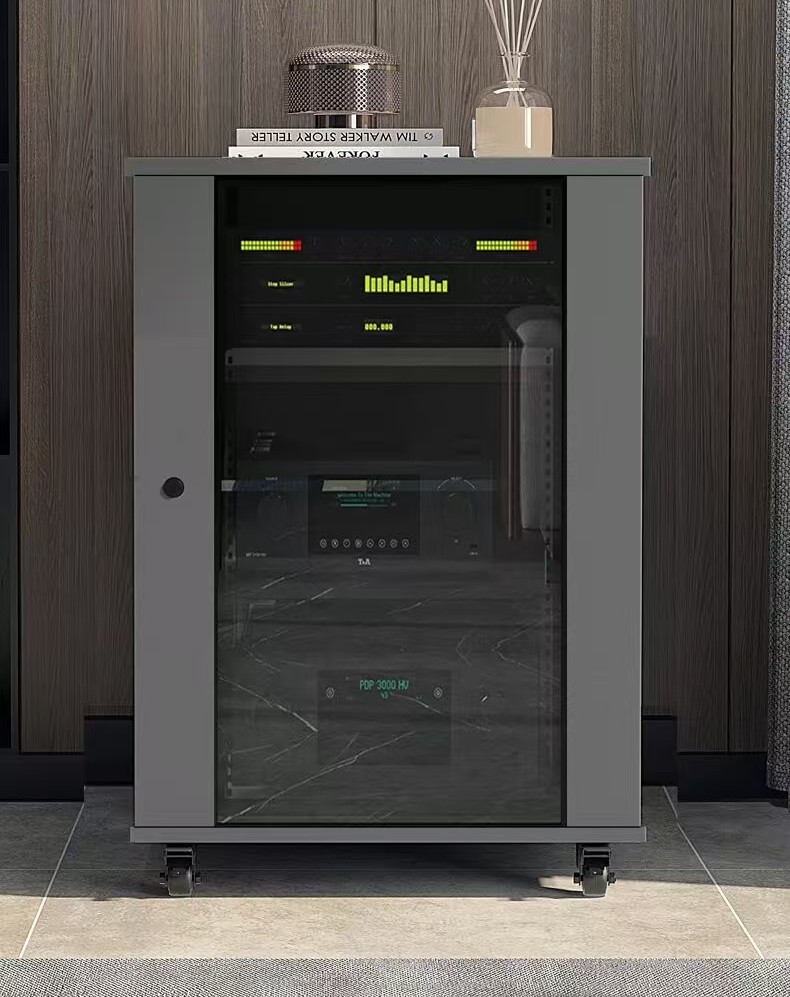

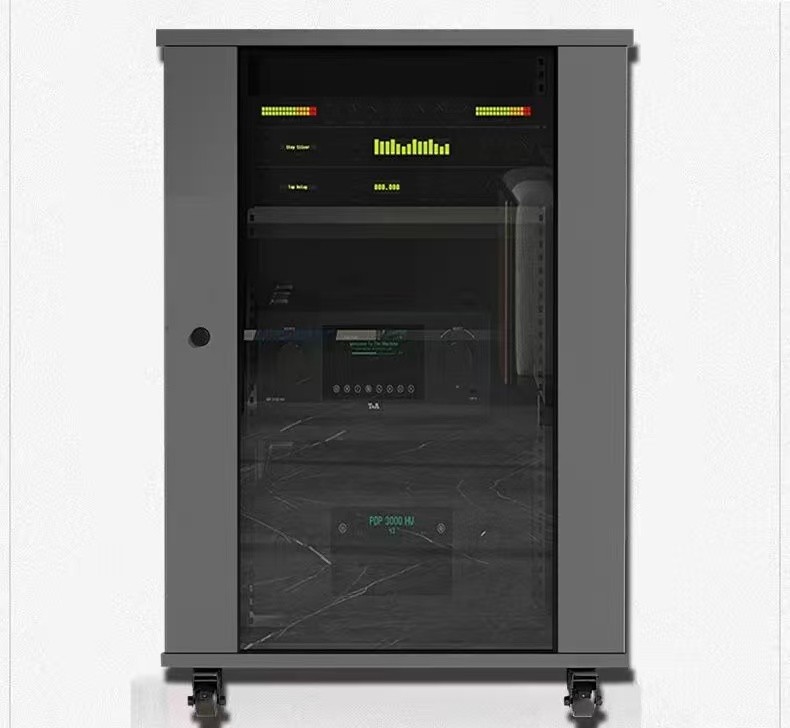

The M-16 features a clean black appearance that complements most professional audio and video equipment. Its understated Onyx-style design allows it to blend naturally with speakers, display systems, projection equipment and entertainment-room interiors.
Keeping all essential equipment inside one rack produces a more professional presentation than placing devices across several pieces of furniture. This is particularly important in customer-facing environments such as private KTV rooms, restaurants, lounges, showrooms and event spaces.

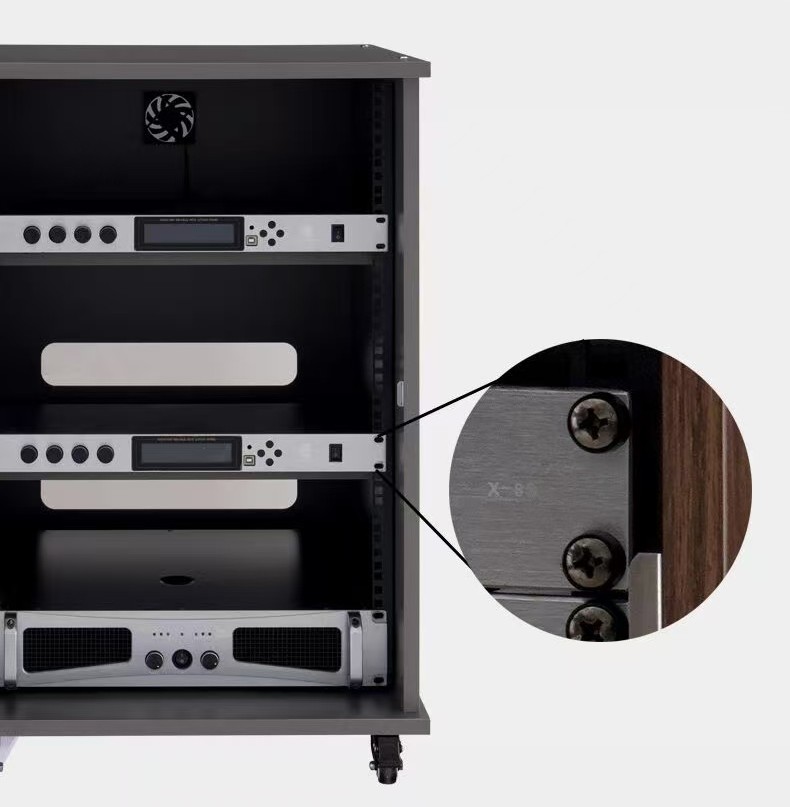

Professional AV equipment can be damaged by accidental impact, unnecessary movement or poor placement. Installing compatible devices inside a dedicated rack helps create a safer and more controlled equipment area.
The M-16 keeps the main components together and reduces the need to move them during regular operation. It can also help prevent equipment from being stacked loosely in an unstable arrangement.
By giving every component its own position, the rack helps users avoid placing objects directly on top of sensitive AV equipment.

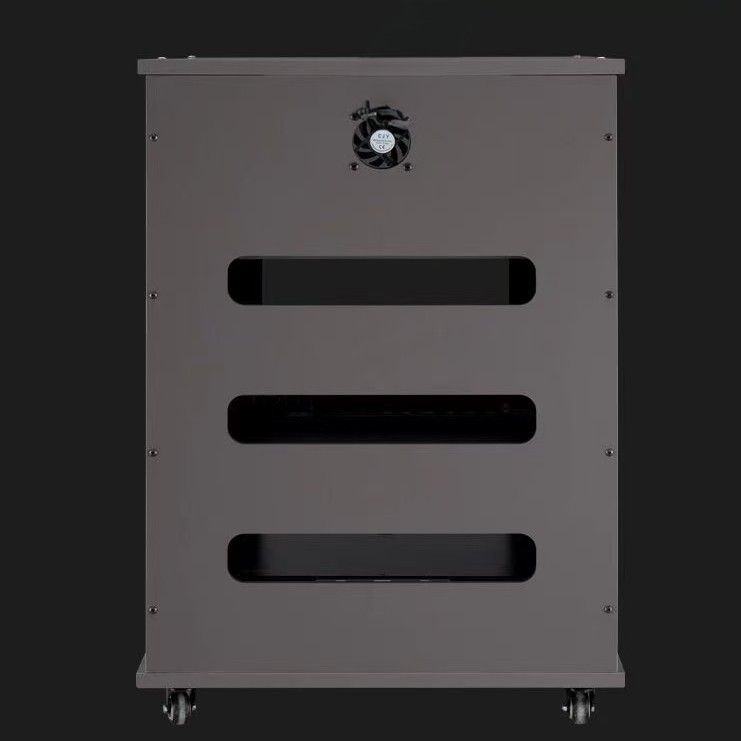

A complete AV system may require many different connections, including power cables, speaker connections, audio signal cables, microphone receiver cables, network cables and control wiring.
When devices are installed in different locations, these connections can quickly become difficult to follow. The M-16 allows installers to route cables within a central equipment area, helping create a neater and more understandable system layout.
Cables can be grouped and labelled according to their purpose. This makes it easier for technicians to trace connections during future servicing or troubleshooting.

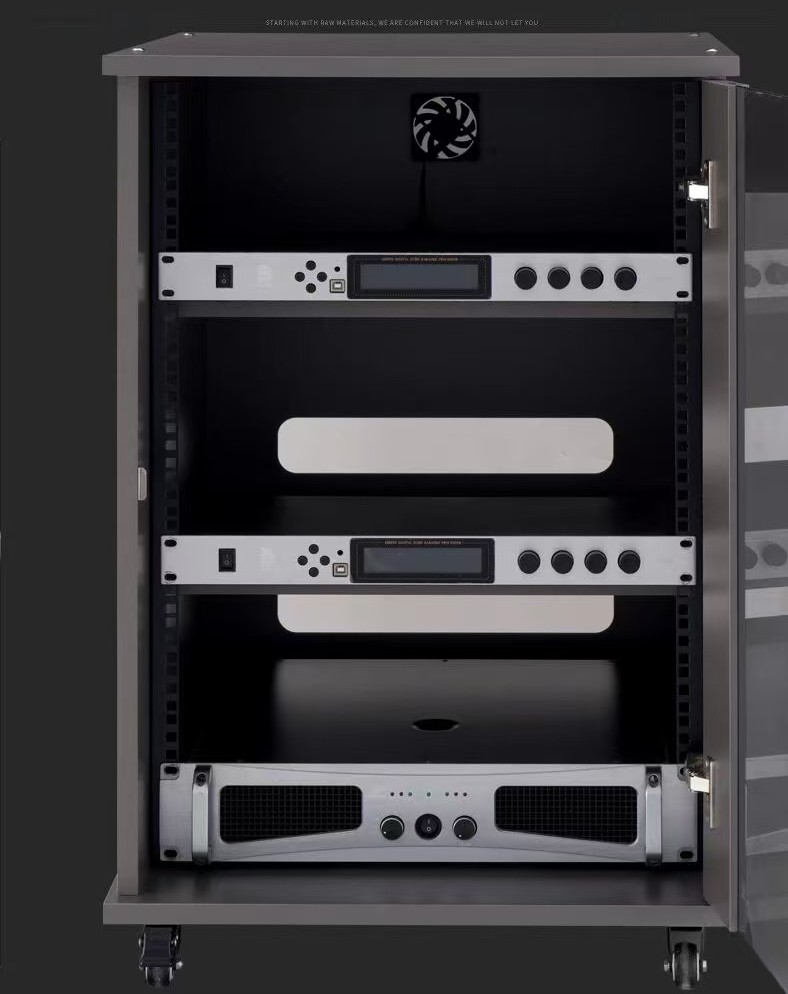

Many professional AV devices generate heat during operation, especially power amplifiers and processors used for long periods. Proper equipment spacing and ventilation are therefore important when planning a rack installation.
The 16U capacity gives installers greater flexibility to arrange equipment with suitable gaps where necessary. Ventilation panels or unoccupied rack spaces may be included according to the cooling requirements of the installed devices.
The rack should always be positioned in a properly ventilated indoor area, and the ventilation openings of each device should not be blocked.
An organised rack makes the complete AV system easier to use. Controls remain in consistent positions, allowing users to find the correct device more quickly.
This is helpful in shared spaces where several staff members or family members may operate the system. Instead of searching for different components around the room, users can access the main equipment from one central location.
A clearly arranged rack can also reduce confusion by separating different system functions, such as microphones, audio processing, amplification and media playback.
When equipment is installed in a clear and structured arrangement, technicians can identify individual components more efficiently. Connections are easier to trace, while maintenance can be carried out without first rearranging multiple loose devices.
The M-16 also allows the system to remain in a consistent configuration. Once the equipment has been correctly installed and connected, it does not need to be moved for normal daily use.
This can help reduce accidental disconnection and make routine system checks more straightforward.
The Master-D Onyx Professional AV Rack M-16 is suitable for a variety of indoor applications, including:
The Master-D Onyx Professional AV Rack M-16 provides the space and organisation needed to build a clean, practical and professional AV installation. Its 16U capacity is suitable for systems containing multiple compatible components, while its 80cm depth offers useful room for equipment installation and rear cable connections.
Whether used for karaoke, entertainment, meetings, presentations or commercial audio applications, the M-16 helps keep valuable equipment organised, accessible and easier to manage.
