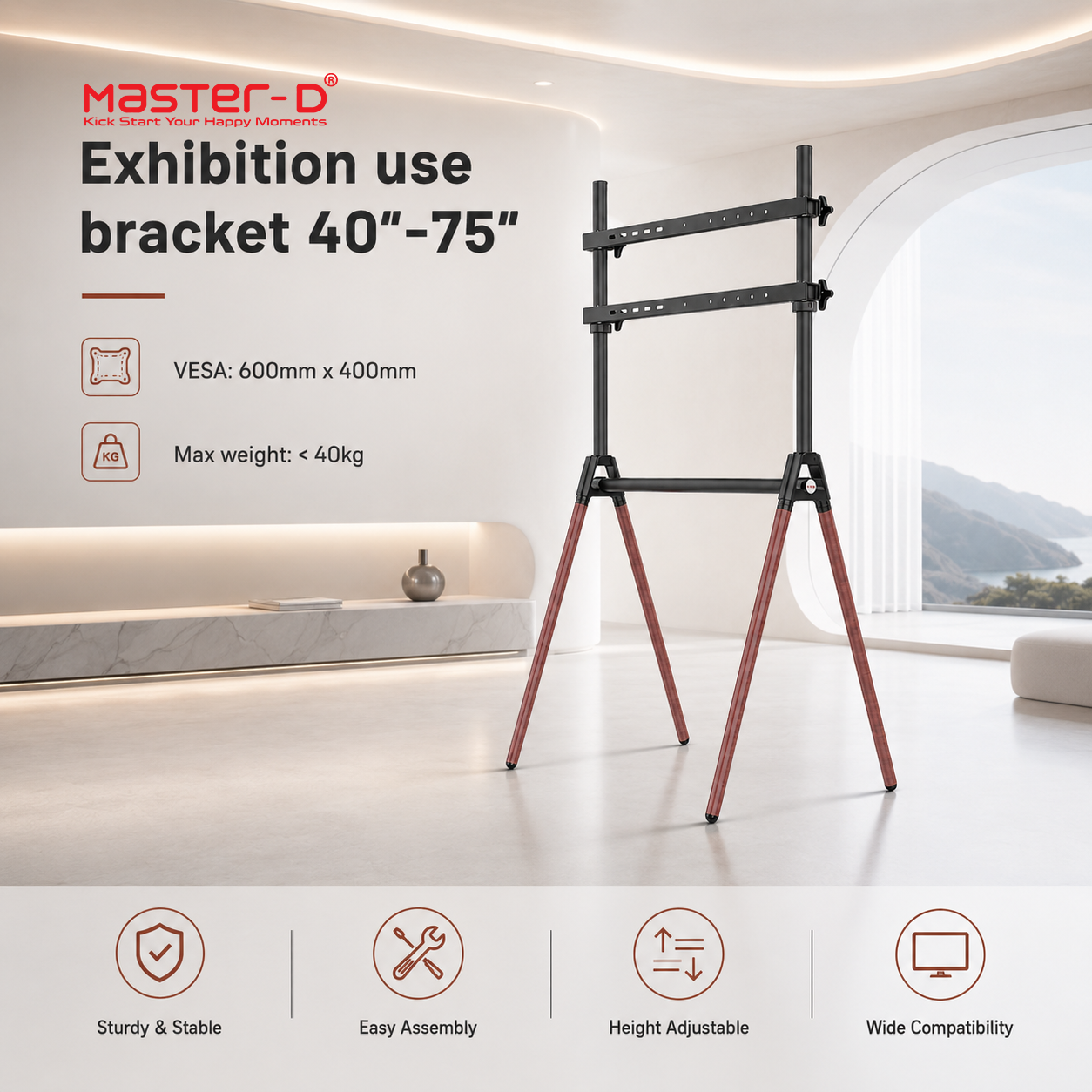

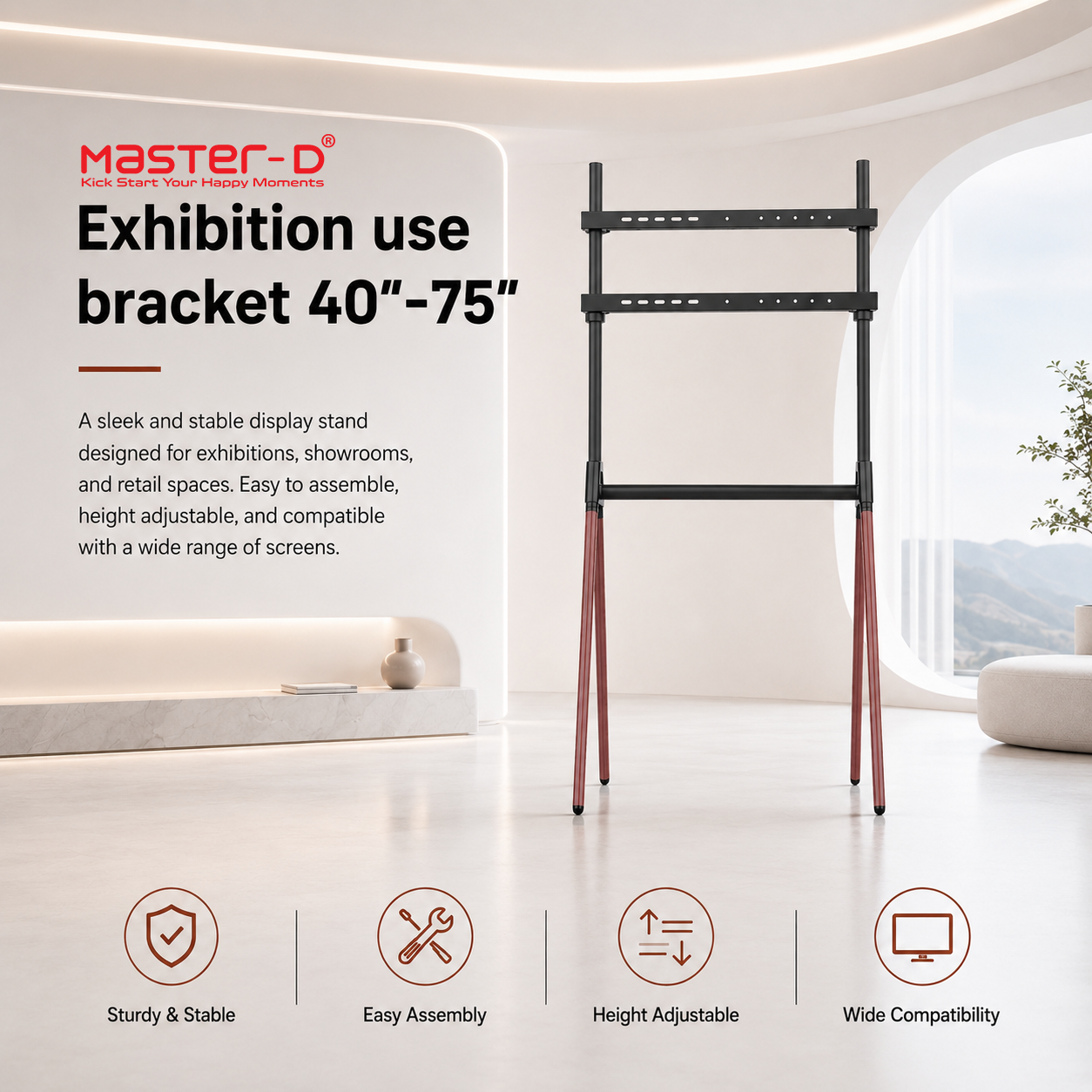

The Master-D Exhibition Use Bracket 40″-75″ is a practical freestanding display solution designed to hold compatible televisions or commercial display screens without the need for permanent wall installation. It is especially suitable for exhibitions, trade shows, showrooms, retail stores, product launches, events, temporary displays, offices, training rooms, classrooms, roadshows and other spaces where a screen needs to be positioned clearly, securely and professionally.
Unlike a conventional wall-mounted TV bracket, this product uses a stable floor-standing frame. This means the screen can be displayed in locations where drilling into the wall is not allowed, where there is no suitable wall available, or where the screen may need to be moved, removed or repositioned after an event. It provides a simple and flexible way to create a professional display area while keeping the surrounding space clean and organised.
The bracket is designed for television and display sizes ranging from 40 inches to 75 inches, making it suitable for a wide variety of commonly used screens. Its adjustable mounting structure supports VESA mounting patterns from approximately 200mm × 200mm up to 600mm × 600mm. VESA refers to the distance between the mounting holes located at the back of a television or display. Before installation, users should check the VESA pattern, screen size and total weight of their television to make sure it is compatible with the bracket.
With a maximum recommended load of less than 40kg, the Master-D Exhibition Use Bracket can support many standard LED TVs, LCD TVs and commercial display panels within the compatible size range. The screen weight should always be checked before installation, as television weight can vary significantly depending on the brand, model, panel type and screen size.
The bracket features two horizontal mounting rails that attach to the back of the screen. These rails can be adjusted to match different mounting-hole positions, allowing the bracket to accommodate a broad range of television models. The vertical distance between the mounting rails can also be adjusted, making the product more flexible when working with screens that use different VESA configurations.

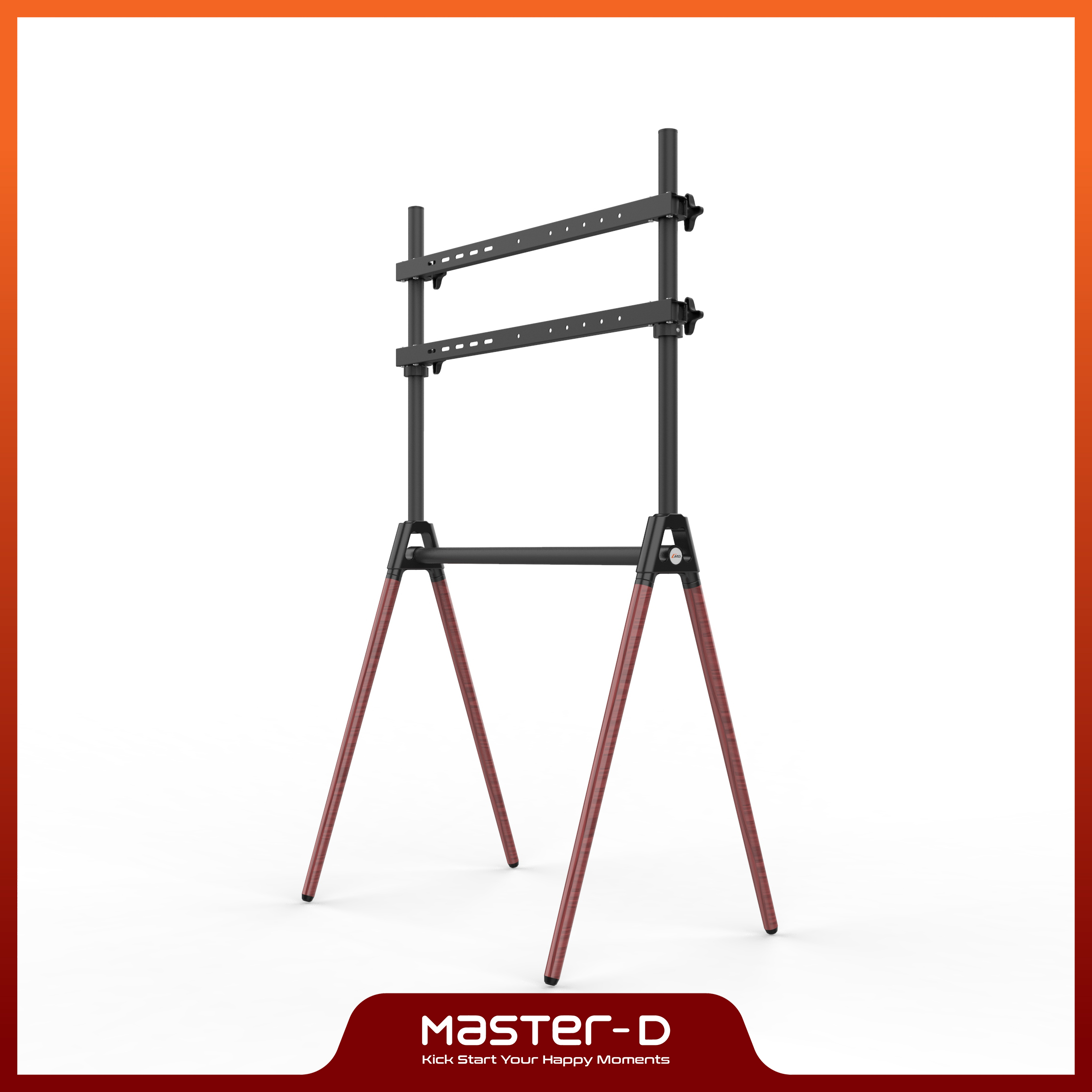

Its overall structure is built around a durable metal frame with strong vertical support poles and a horizontal reinforcement bar. The lower section uses four angled legs to create a wide and stable standing base. This A-frame-style design helps distribute the weight of the screen across the floor and improves balance during use. The angled legs also give the stand a clean exhibition-style appearance that works well in both commercial and modern interior environments.

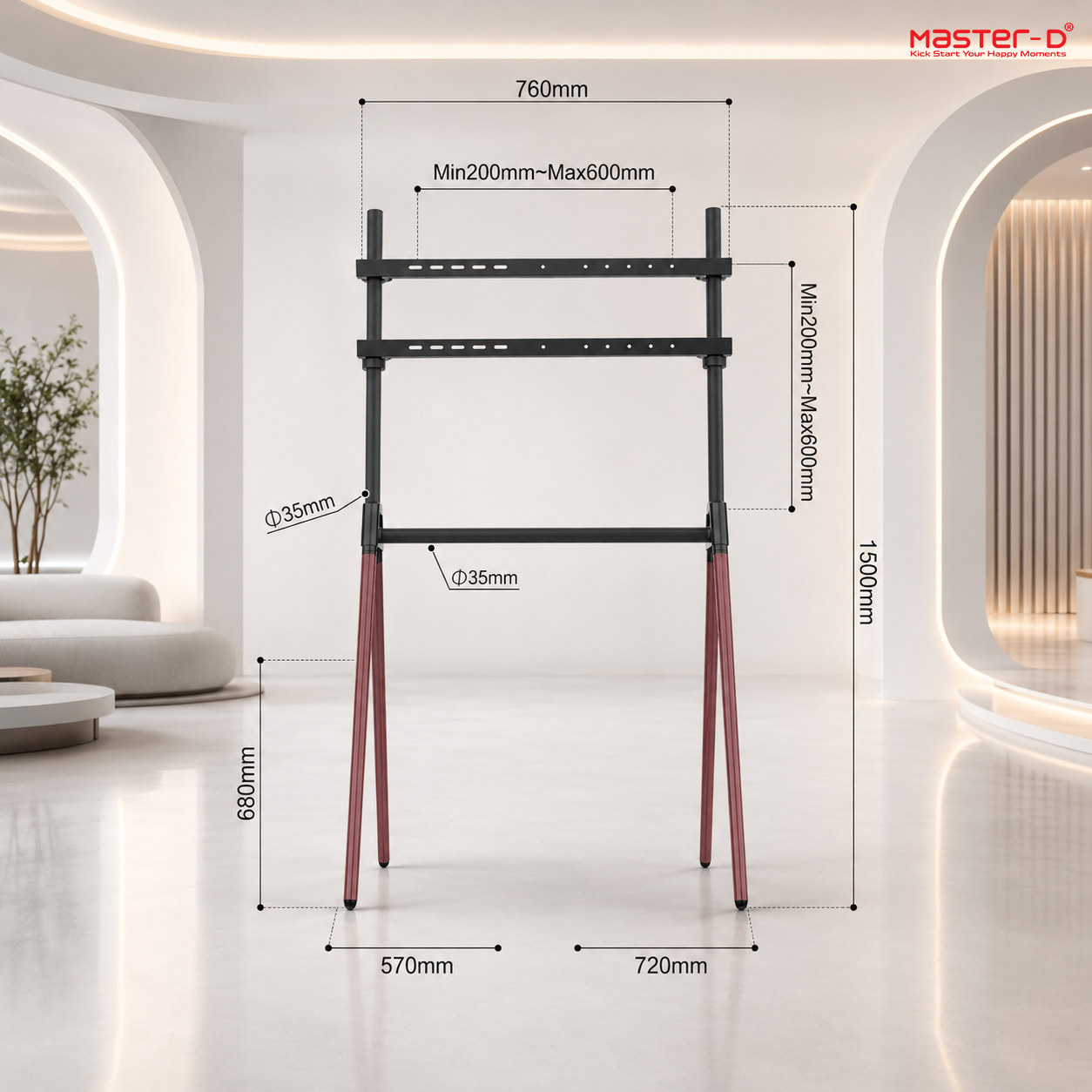

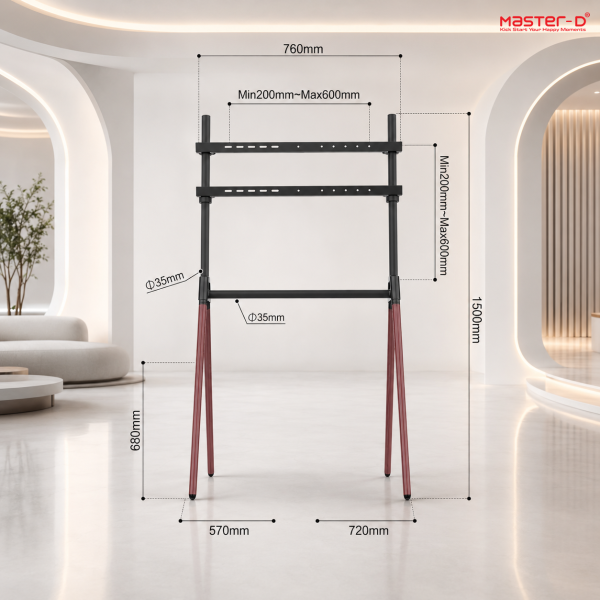

The bracket has an overall height of approximately 1500mm, allowing the screen to be positioned at a comfortable viewing level for standing audiences, seated visitors or customers walking through an exhibition area. The total top-frame width is approximately 760mm, while the base measures approximately 720mm across and 570mm deep. These dimensions provide a stable footprint without making the stand unnecessarily bulky.
The main support poles and reinforcement bar use approximately 35mm-diameter tubing, helping the stand maintain strength while keeping the overall design visually simple. The reddish-brown angled legs add a distinctive and premium appearance, while the black upper frame keeps the design professional and easy to match with most television colours and commercial environments.
One of the main advantages of this bracket is its versatility. It can be used to display promotional videos at a product launch, digital menus at an event, company presentations in a showroom, advertising content in a retail shop, demonstration videos at an exhibition booth or informational content in a temporary public display area. It can also be used in meeting spaces where a wall-mounted screen is not practical.
The freestanding structure makes it particularly useful for temporary installations. After an exhibition, presentation or event is completed, the screen can be removed and the stand can be disassembled for storage or transportation. This makes it more convenient than a permanent mounting system for businesses that frequently participate in roadshows, trade fairs or promotional events.
Assembly is designed to be straightforward. The main frame, support poles, mounting rails, reinforcement bar and legs are connected to create the complete stand. However, because a television can be heavy and fragile, installation should preferably be carried out by at least two people. One person should support the screen while the other secures the mounting components. All screws, clamps and connection points should be tightened properly before the screen is released.
For safe installation, the stand should always be placed on a flat, solid and level surface. It should not be positioned on uneven flooring, thick unstable carpet, slopes or areas where people may easily knock into the legs. The screen should be centred on the bracket so that the weight is distributed evenly. Users should also avoid pulling, pushing or hanging additional objects from the frame.
Before purchasing or installing the bracket, it is important to confirm three main details: the screen size, the VESA mounting pattern and the screen weight. A television may be within the 40-inch to 75-inch size range but still be unsuitable if its mounting-hole pattern is larger than the supported range or if its total weight exceeds the recommended limit.
The bracket does not include the television shown in promotional images. Screen compatibility may also depend on the shape of the television’s rear panel, the position of its input ports and whether additional spacers are required. Televisions with deeply recessed mounting holes, curved rear panels or unusual mounting designs may require suitable screws, washers or spacers.
Overall, the Master-D Exhibition Use Bracket 40″-75″ is an excellent solution for users who need a stable, adjustable and professional way to display a large television without mounting it permanently to a wall. Its wide screen compatibility, adjustable VESA mounting system, freestanding construction and exhibition-ready appearance make it suitable for both commercial and temporary display applications.
Whether it is used for an exhibition booth, showroom presentation, retail promotion, corporate event, classroom, office or product demonstration, this bracket offers a clean and practical way to place important visual content where audiences can see it clearly.
Please check the television’s size, weight and VESA mounting-hole measurement before purchase. For safe installation, use the correct screws and mounting hardware for the television model, tighten all connection points securely and install the screen with assistance from another person.
| Specification | Details |
|---|---|
| Product Name | Master-D Exhibition Use Bracket 40″-75″ |
| Product Type | Freestanding TV / Display Bracket |
| Compatible Screen Size | 40″–75″ |
| VESA Compatibility | 200 × 200mm to 600 × 600mm |
| Maximum Load Capacity | Less than 40kg |
| Overall Height | Approximately 1500mm |
| Top Frame Width | Approximately 760mm |
| Base Width | Approximately 720mm |
| Base Depth | Approximately 570mm |
| Support Pole Diameter | Approximately Ø35mm |
| Crossbar Diameter | Approximately Ø35mm |
| Mounting Adjustment | Adjustable horizontal and vertical mounting rails |
| Installation Type | Floor-standing, non-wall-mounted |
| Frame Material | Metal |
| Frame Colour | Black |
| Leg Colour | Reddish brown |
| Recommended Installation | Two-person assembly |
| Suitable Applications | Exhibitions, showrooms, retail stores, roadshows, offices, classrooms, events and product presentations |
| Package Note | Television is not included |
| Important Reminder | Check the screen size, weight and VESA mounting pattern before installation |
