Product Description

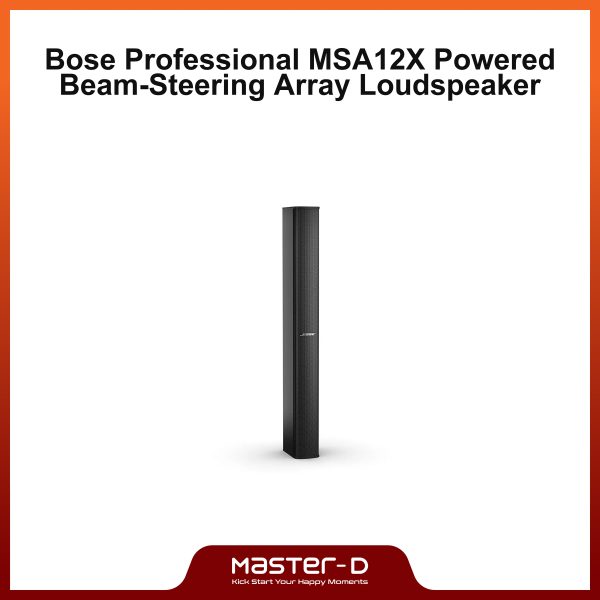

The Bose Professional MSA12X Powered Beam-Steering Array Loudspeaker is a professional column-array loudspeaker intended to deliver clear sound over distance while controlling where much of that sound goes. A column array uses several drivers arranged vertically. In simple terms, this shape can reduce wasted energy toward ceilings and floors and put more useful sound toward the audience, which is valuable in reverberant rooms where reflections make speech difficult to understand. The slim profile of the MSA12X can also integrate more discreetly into architecture than a conventional wide loudspeaker enclosure.
Its published frequency performance is 58 Hz – 18 kHz. The maximum output specification is 103 dB peak (1 module), 102 dB peak (2 modules), 101 dB peak (3 modules). Published coverage information of 160° horizontally and ±30° (1 module), ±40° (2 or 3 modules) vertically helps the system designer aim sound toward occupied seating. These figures are design tools, not a guarantee that a difficult room will become perfect; acoustic modelling, mounting height, delay, equalization, and the number of arrays still matter.
The MSA12X should be installed as part of a professionally engineered system with suitable amplification, processing, mounting hardware, and safety attachment. The enclosure dimensions are 38.7 in × 4.2 in × 8.1 in (984 mm × 106 mm × 206 mm), and the listed net weight is 32.0 lb (14.5 kg). For powered or beam-steering models, network setup and control software are also part of commissioning; for passive models, amplifier selection and protective filtering are central. Careful alignment can improve speech intelligibility and make level changes from front to back less distracting.
The MSA12X is well suited to worship spaces, lecture halls, auditoriums, terminals, atriums, and other rooms where speech must remain understandable without visually dominating the architecture. It can also support music, but the required low-frequency extension and overall output should be evaluated for the program. Select this product when controlled coverage and a narrow visual profile are more important than simply choosing the smallest or loudest loudspeaker. Final array quantity, aiming, beam settings, and subwoofer support should be confirmed for the actual venue.
Suitable Use Scenarios
- Houses of worship, lecture halls, and auditoriums where spoken words must remain clear over distance
- Architecturally sensitive rooms that need a slim loudspeaker profile and controlled vertical coverage
- Transport terminals, atriums, and public spaces with reflective surfaces and challenging acoustics
- Performance and presentation systems that need focused sound directed toward listeners rather than ceilings and floors
- Large meeting or assembly spaces where consistent level and intelligibility are more important than visible loudspeaker size
