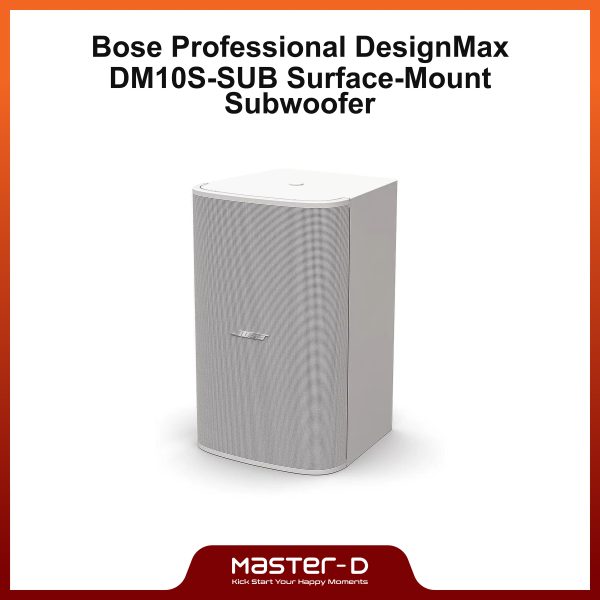

Bose Professional DesignMax Surface-Mount Subwoofer | Model: DM10S-SUB

Product Description

The Bose Professional DesignMax DM10S-SUB Surface-Mount Subwoofer is a professional subwoofer or bass module for installed sound systems. Its job is to reproduce the low-frequency energy that gives music depth, weight, and physical impact. Main loudspeakers are often optimized for voices and musical detail; adding the DM10S-SUB allows those loudspeakers to work more comfortably while the subwoofer handles the deepest part of the program. For a non-technical reader, this means bass notes sound fuller and a system can feel more complete without forcing every visible loudspeaker to be large.

The published frequency performance is 35 Hz – 125 Hz. The listed maximum sound-pressure level is 115 dB, which helps an audio designer estimate how much bass output is available for the room. Low-frequency sound behaves differently from higher-frequency sound: it spreads broadly, interacts strongly with walls and corners, and can build up unevenly in some locations. Because of this, placement and signal processing are as important as the subwoofer's raw output rating.

The DM10S-SUB needs a compatible amplifier channel and appropriate filtering so only the intended bass frequencies are sent to it. The manufacturer lists 300 W for power handling or output planning. Its enclosure is listed at 19.8 in × 12.5 in × 12.7 in (502 mm × 316 mm × 323 mm), loudspeaker / 19.8 in × 12.5 in × 13.6 in (502 mm × 316 mm × 346 mm), loudspeaker with bracket, with a net weight of 35.5 lb (16.1 kg), loudspeaker with grille & bracket. Only use it in environments allowed by the official environmental specifications. Correct commissioning protects the driver, balances the bass with the main loudspeakers, and prevents an impressive demo setting from becoming tiring during normal operation.

Choose the DM10S-SUB when the sound system needs stronger bass than the main loudspeakers can provide on their own. It is particularly useful for music-focused hospitality, entertainment, retail experiences, multipurpose rooms, and presentations with media playback. It is not automatically necessary for every voice-only system, and more bass is not always better; the goal is controlled, even low-frequency support that suits the audience and the program. A designer should confirm the required quantity, placement, crossover frequency, amplifier headroom, and structural installation method for the real room.

Suitable Use Scenarios

• Restaurants, entertainment venues, and hospitality spaces that need fuller low-frequency impact for music
• Retail and experience spaces where a compact main loudspeaker system needs stronger bass support
• Multipurpose rooms, performance areas, and presentations that benefit from greater weight and realism
• Installed systems where the main loudspeakers should handle voice and detail while the subwoofer handles deep bass
• Indoor or outdoor projects, when permitted by the stated environmental rating, that require dependable low-frequency reinforcement
