BMB CSP-612

CSP Series

BMB Sound everywhere, PA type speaker Tuned for valious scene use.

Cabinet made of high quality birch plywood assembled by box joint.
The tough structure keeps outputting powerful sound stably.
Clear high frequency sound by fine-tuned diaphragm

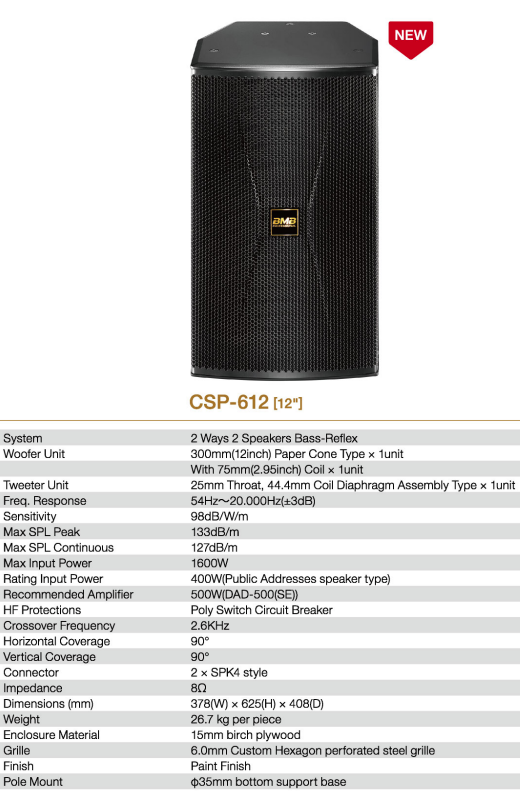

CSP-612 [12″]
System Type    Two-Way loudspeaker, bass reflex
Frequency Range(-10dB) *1    58Hz～20kHz
Frequency Response(±3dB) *1    110Hz～20kHz
Sound Pressure Level *2    96dB
Impedance    8Ω
Max Sound Pressure Level *3    122dB(Peak 128dB)
Power Capacity    Continuous 400W, Program 800W, Peak 1600W

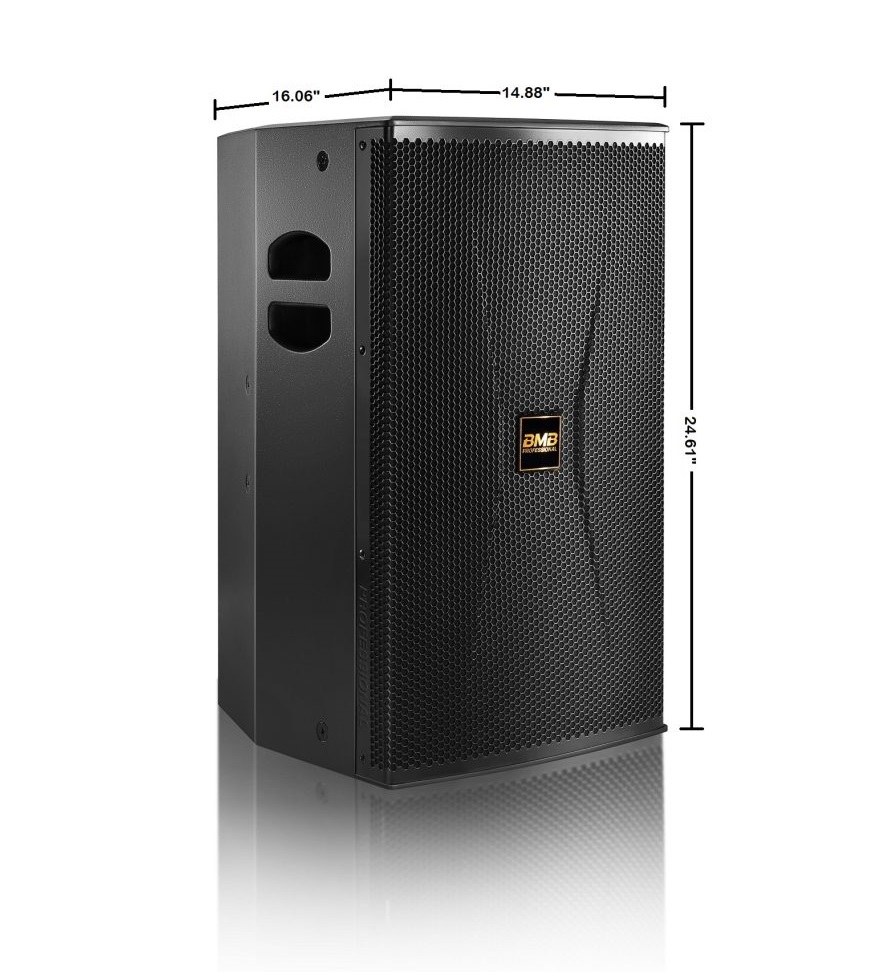

Dimensions    (W)378mm×(H)625mm×(D)408mm
(14.9″×24.6″×16.1″)
Shipping Dimensions    (W)480mm×(H)735mm×(D)510mm
(18.9″×28.9″×20.1″)
Net Weight    26.7kg(58.9lbs)
Shipping Weight    30.3kg(66.8lbs)
Input Connectors    Speaker Connector(4P)×2
Pole Mount Cap    Φ36mm(1.4″), Depth 75mm(3.0″)
Speaker unit    LF Unit:300mm(12.0″) Cone, 75mm(3.0″) Voice Coil×1
HF Unit:25mm(1.0″) Throat, 44.4mm(1.7″) Voice Coil×1
Enclosure Construction    15mm(0.6″) Plywood
Accessories    Owners manual
Registration card
*1 Full space (4π) conditions
*2 1w1m on-axis, swept-sine in anechoic environment
*3 Calculated
