JBL Premium Karaoke Package | MK10 + Beyond 3 + Pasion-12SP + LD-004 Wireless Mic

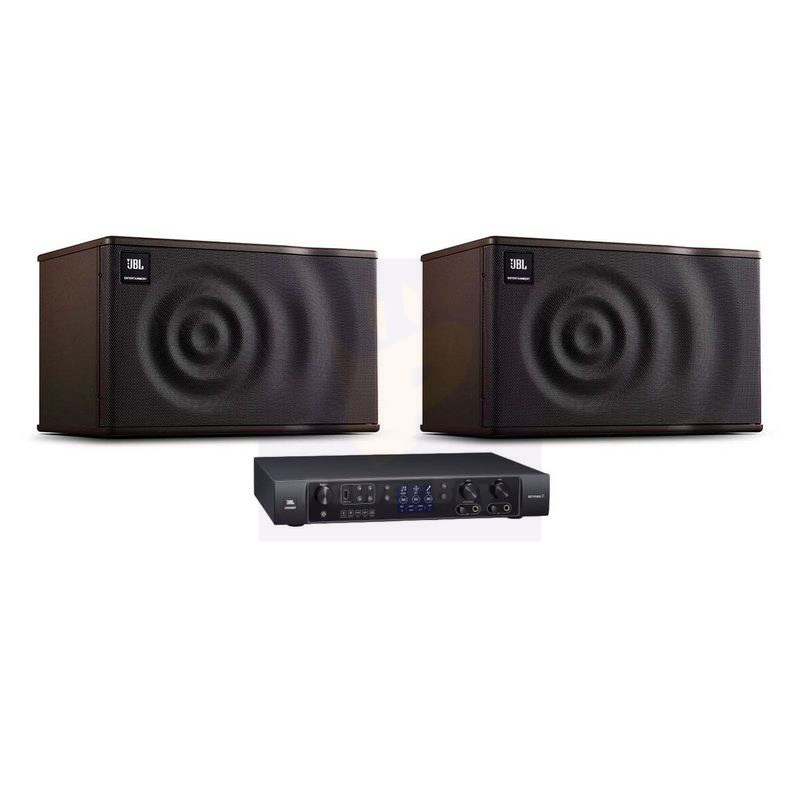

JBL MK10 – 10″ 250W Professional Karaoke Speakers (Pair)

• System Type: 10″, 2-way, bass-reflex design

• Power Handling: 250 W continuous / 500 W program / 1000 W peak

• Frequency Response (−10 dB): 45 Hz – 18 kHz

• Frequency Response (±3 dB): 65 Hz – 15 kHz

• Sensitivity: 90 dB

• Max SPL: 113 dB continuous (119 dB peak)

• Nominal Impedance: 8 Ω

• Coverage: 120° × 100°

• Drivers: 1 × 10″ woofer, 3 × 3″ tweeters

• Dimensions (H × W × D): 285 × 520 × 320 mm

• Net Weight: ~13.5 kg (each)

JBL Beyond 3 – 360W 2CH Digital Integrated Amplifier

• Rated Power: 2 × 180 W @ 8 Ω (360 W total)

• Amplifier Type: Class-D

• Frequency Response: 20 Hz – 20 kHz (+1/−1 dB, RCA input)

• THD: ≤ 1% (20 Hz – 20 kHz)

• Signal-to-Noise Ratio: ≥ 90 dB (RCA)

• Features: Karaoke DSP with pitch shift, echo, reverb, feedback suppression

• EQ: 15-band parametric EQ for mic and music inputs

• Presets: 8 user-definable presets

• Inputs: RCA, Optical, Bluetooth, USB, Mic inputs, HDMI

• Dimensions (W × H × D): 428 × 76 × 315 mm

• Net Weight: ~5.5 kg

JBL Pasion-12SP – 12” Active Subwoofer

• Power Output: 300 W RMS / 450 W dynamic

• Frequency Response: 40 Hz – 160 Hz

• Sensitivity: 95 dB

• Variable Crossover: 40 Hz – 160 Hz, 24 dB/octave

• Inputs/Outputs: RCA L+R, XLR with link outputs

• Power Supply: 100–240 V AC, 50/60 Hz

• Dimensions (H × W × D): 396 × 464 × 430 mm

• Net Weight: 22.65 kg

Master-D LD-004 – UHF Wireless Microphone System

• Frequency Range: 600 – 700 MHz

• Modulation: Digital Frequency Modulation

• Frequency Response: 50 Hz – 18 kHz

• Signal-to-Noise Ratio: > 90 dB

• Distortion: ≤ 0.5% @ 1 kHz

• Output Level: 200 mV ± 5 mV

• Wireless Type: UHF, built-in stabilised receiver

• Power: Rechargeable 18650 battery (microphones & receiver)
